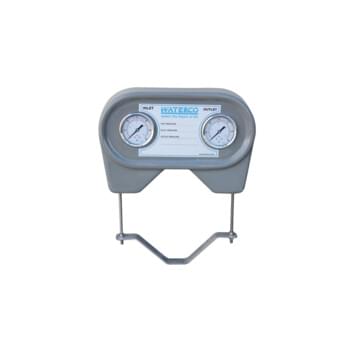

Dual Pressure Gauge Panel

Waterco’s Dual Pressure gauge panel extremely versatile pressure measurement and test instrument. It can simultaneously display the output of two pressure gauges, so that you can accurately monitor the filter’s pressure drop.

Sign Up for Waterco Newsletter

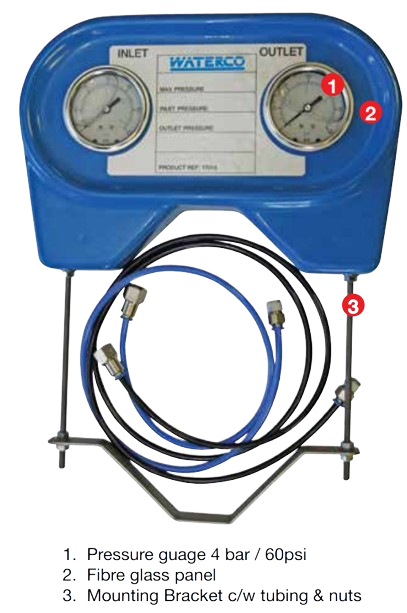

  • Waterco’s Dual Pressure Gauge Panel is an extremely versatile pressure measurement and test instrument. It can simultaneously display the output of two pressure gauges, so that you can accurately monitor the filter’s pressure drop.

  • Features

    • Easy installation
    • Fibreglass panel
    • Precision measurement
    • Liquid filled gauges that minimizes the effect of severe environments, protects the gauge internals and provides continuous lubrication in the mechanism
    • Corrosion resistant stainless steel casing gauges
  • Technical Specification

    • Service: Liquids Case & Ring (Pressure Gauges): stainless steel
    • Pressure Limit: 0 -4.1 BAR (0 -60 PSI)
    • Process Connections: 1/4”BSPT
    • Accuracy: 2.5% full scale
    • Bourdon Tube: Phosphor bronze
    • Window: Polycarbonate
    • Dial: Galvalume white background with blue and black markings
    • Pointer: Galvalume black finish

Features:

  • Easy installation
  • High grade pressure gauges
  • Precision measurement
