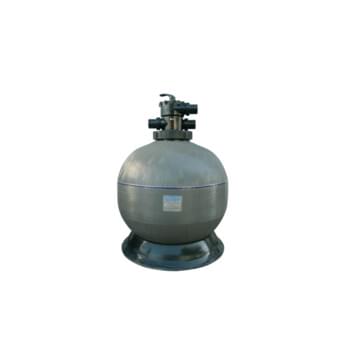

Micron Top Mount Media Filter

The effect of deep media bed improves the filtration efficiency over standard high-rate filters by providing enhanced in-depth filtration and increased dirt capacity.

Sign Up for Waterco Newsletter

  • Setting new global benchmarks in durability, versatility, reliability and longevity, Waterco’s Micron fibreglass filters are the preferred choice for commercial and industrial operations that demand superior water quality.

    • Seamless one-piece vessel
    • Strict quality control
    • Proprietary construction
    • High corrosion resistance

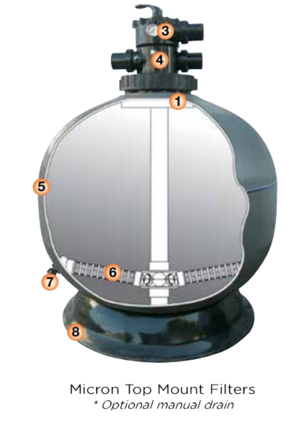

    1. Inflow diffuser for even distribution of water flow across the filter bed.
    2. Elliptical positive sealing manways.
    3. Pressure gauge.
    4. Six position Multiport valve with sight glass and quick connect half unions.
    5. UV and corrosion resistant fibreglass wound tank.
    6. Hydraulically balanced laterals to maximise water flow and filtration.
    7. Manual drain.
    8. Large filter base for stable floor mounting.
  • Internal plumbing & laterals

    Fibreglass filter vessels are shipped complete - no field installation of internal plumbing is required. All internal plumbing is structurally supported to eliminate potential transit damage.

  • Hydraulically balanced laterals

    Micron vertical commercial filters are equipped with “Fish tail” or “Fish-bone” hydraulically balanced laterals, to improve its filtration and backwashing hydraulic efficiency

  • Conventional laterals are not suitable for large-scale commercial filters as “dead legs” exist between the laterals, which compromises water flow through the filter bed. Waterco’s unique “fish tail” or “fish bone” lateral configuration eliminates this problem by providing effective coverage of the filter bed and balanced water flow.

The filter's 500mm to 1000mm media bed ensures that finer dirt particles and colloidal substances are retained to a far greater level than a filter with a shallower bed depth.
